Bow Shackle with nut & split pin. AISI 316
$0.01
Bow shackle with nut and split pin
Stainless steel A4 - AISI 316

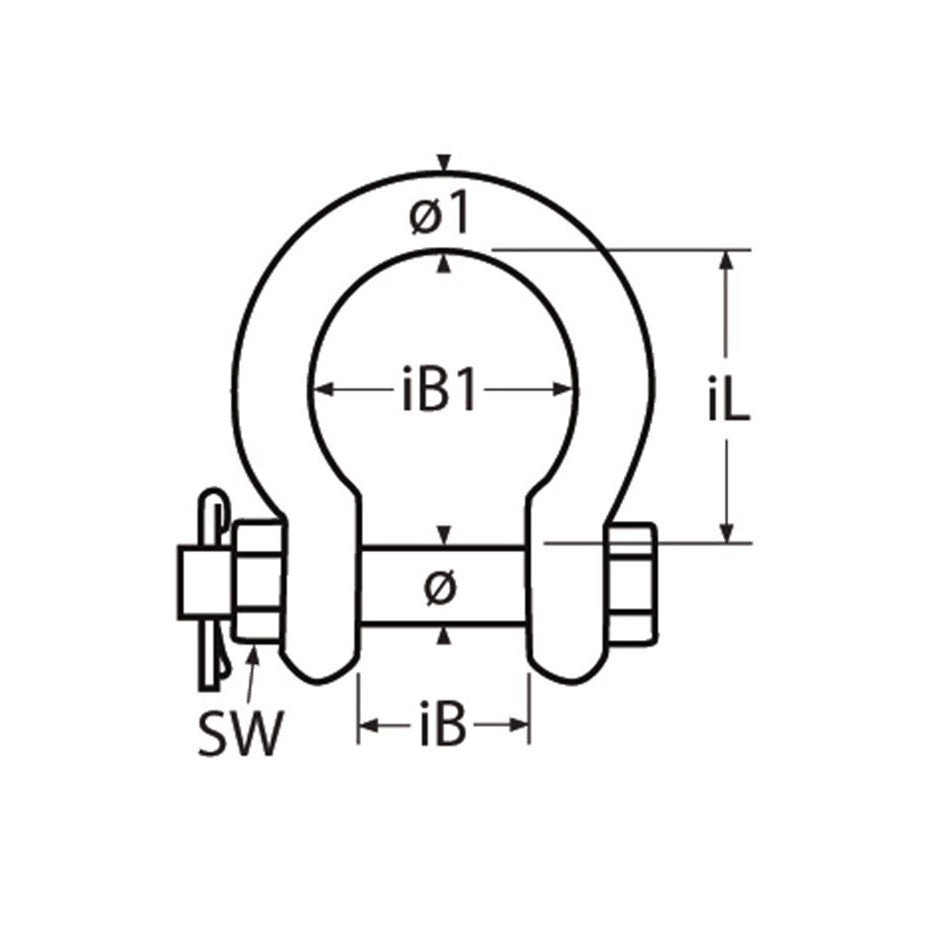

| Diameter (ø) |
Diameter 1(ø1) (MM) |
Inside width (iB) (MM) |
Inside width 1 (iB1)(MM) |
Inside length (iL)(MM) |
Breaking load (KG) |
| 5mm | 6.4 | 9.7 | 16 | 22 |
1320 |
| 6mm | 8 | 12 | 20 | 29 | 2000 |
| 8mm | 9.5 | 13.5 | 21 | 31 |
3000 |
| 10mm | 11 | 17 | 26 | 36 | 4000 |
| 12mm | 16 | 21 | 33 | 48 | 8000 |
| 16mm | 19 | 27 | 42 | 60 |
12000 |
| 20mm | 22 | 32 | 52 | 71 | 16000 |
| 22mm | 25 | 36 | 57 | 84 |
20000 |
