    D-shackle with hexagon socket & O-ring SUS 304

    $0.01
    Size
    D-shackle with hexagon socket & O-ring
    An O-ring is fitted to reduce loosening caused by vibration.

    ■ Material: SCS13 (equivalent to SUS304), Pin: SUS304, O-ring: rubber

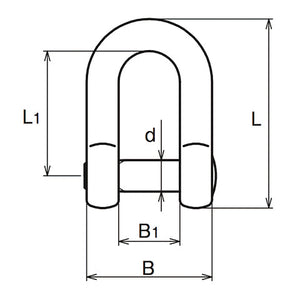

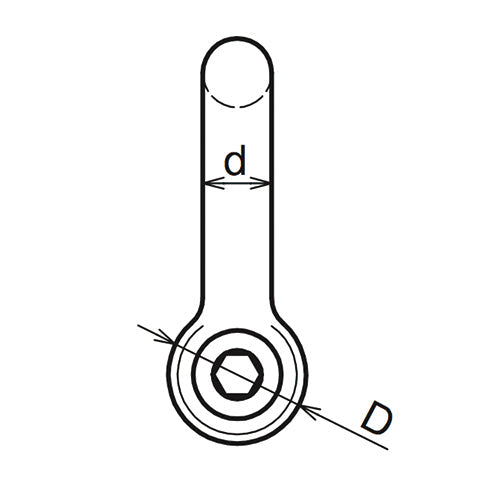

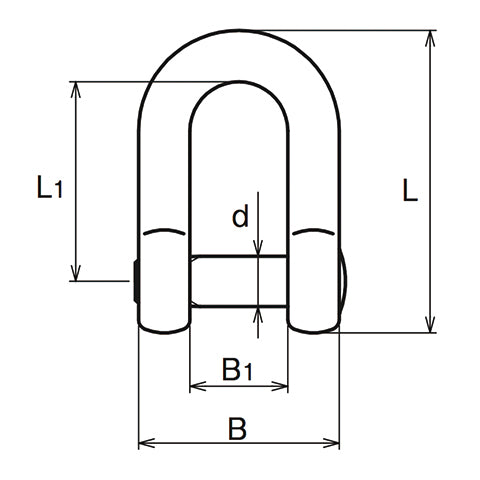

    Size (d)

    (mm)

    		 L(mm) L1(mm) B(mm) B1(mm) D(mm) Thread dia.
    6 36
    		 24
    		 24
    		 12
    		 12 W1/4
    7 42
    		 28
    		 28
    		 14
    		 14 W5/16
    8 48
    		 32
    		 32
    		 16
    		 16
    		 W5/16
    9 54 36 36 18 18  W3/8
    10 60 40 40 20
    		 20 W3/8
    12 72 48 48 24 24 W1/2
    13 78 52 52 26 26 W1/2
    16 96 64 64 32 32 W5/8
    19 114 76 76 38 38 W3/4
